Page 15 - Brochure Lites Profile

Lites s.r.l.
Lites s.r.l.

for more information
contact us Lites Profile C6
info@litessrl.com Colour RGBACL

www.litessrl.com
www.professionallighting.eu

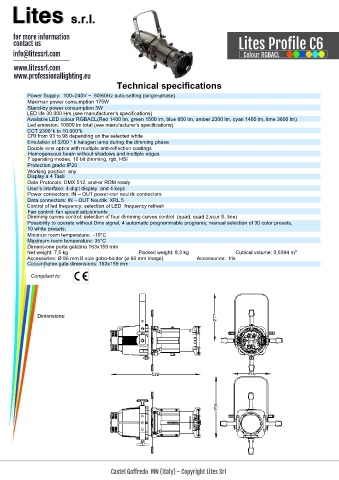

Technical specifications
Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
Maximun power consumption 175W
Stand-by power consumption 3W
LED life 30.000 Hrs (see manufacturer’s specifications)
Available LED colour RGBACL(Red 1400 lm, green 1500 lm, blue 600 lm, amber 2300 lm, cyan 1400 lm, lime 3600 lm)
Led emission: 10800 lm total (see manufacturer’s specifications)
CCT 2300°k to 10.000°k
CRI from 93 to 98 depending on the selected white
Emulation of 3200 ° k halogen lamp during the dimming phase
Double lens optics with multiple anti-reflection coatings
Homogeneous beam without shadows and multiple edges
7 operating modes, 16 bit dimming, rgb, HSI
Protection grade:IP20
Working position: any
Display a 4 Tasti
Data Protocols: DMX 512, and-or RDM ready
User’s interface: 4-digit display and 4 keys
Power connectors: IN – OUT power-con neutrik connectors
Data connectors: IN – OUT Neutrik XRL 5
Control of led frequency: selection of LED frequency refresh
Fan control: fan speed adjustments
Dimming curves control: selection of four dimming curves control (quad, quad 2,scur S, line)
Possibility to operate without Dmx signal, 4 automatic programmable programs; manual selection of 30 color presets,
10 white presets;
Minimun room temperature: -10°C
Maximum room temperature: 35°C
Dimensione porta gelatina 163x159 mm
Net weight: 7,5 kg Packed weight: 8,3 kg Cubical volume: 0,0394 m 3
Accessories: Ø 86 mm B size gobo-holder (ø 66 mm image) Accessories: Iris
Colour-frame gate dimensions: 163x159 mm
diaphragm
Compliant to:

Dimensions:

Castel Goffredo MN (Italy) - Copyright Lites Srl
