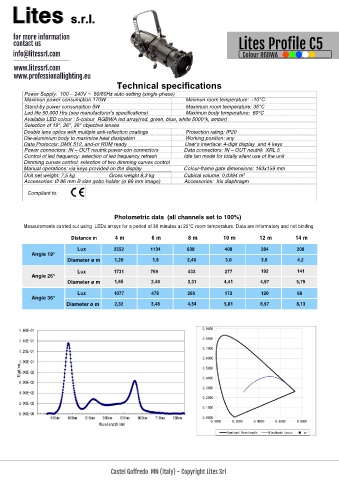

Page 12 - Brochure Lites Profile

Lites s.r.l.
Lites s.r.l.

for more information
contact us Lites Profile C5
info@litessrl.com Colour RGBWA

www.litessrl.com
www.professionallighting.eu
Technical specifications
Power Supply: 100 – 240V ~ 50/60Hz auto-setting (single-phase)
Maximun power consumption 170W Minimun room temperature: -10°C
Stand-by power consumption 5W Maximum room temperature: 35°C
Led life 50.000 Hrs (see manufacturer’s specifications) Maximun body temperature: 60°C
Available LED colour : 5-colour RGBWA led array(red, green, blue, white 5000°k, amber)
Selection of 19°, 26°, 36° objective lenses
Double lens optics with multiple anti-reflection coatings Protection rating: IP20
Die-aluminium body to maximize heat dissipation Working position: any
Data Protocols: DMX 512, and-or RDM ready User’s interface: 4-digit display and 4 keys
Power connectors: IN – OUT neutrik power-con connectors Data connectors: IN – OUT neutrik XRL 5
Control of led frequency: selection of led frequency refresh Idle fan mode for totally silent use of the unit
Dimming curves control: selection of two dimming curves control
Manual operations: via keys provided on the display Colour-frame gate dimensions: 163x159 mm
Unit net weight: 7,5 kg Gross weight 8,3 kg Cubical volume: 0,0394 m 3
Accessories: Ø 86 mm B size gobo-holder (ø 66 mm image) Accessories: Iris diaphragm

Compliant to:

Photometric data (all channels set to 100%)
Measurements carried out using LEDs arrays for a period of 30 minutes at 25°C room temperature. Data are informatory and not binding

Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Lux 2552 1134 638 408 284 208
Angle 19°
Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2

Lux 1731 769 433 277 192 141
Angle 26°
Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79

Lux 1077 478 269 172 120 88
Angle 36°
Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13

Castel Goffredo MN (Italy) - Copyright Lites Srl
