Page 19 - Brochure HPLED II

Lites s.r.l.
Lites s.r.l.

for more information
contact us HPLED II C6
info@litessrl.com Colour RGBACL

www.litessrl.com
www.professionallighting.eu

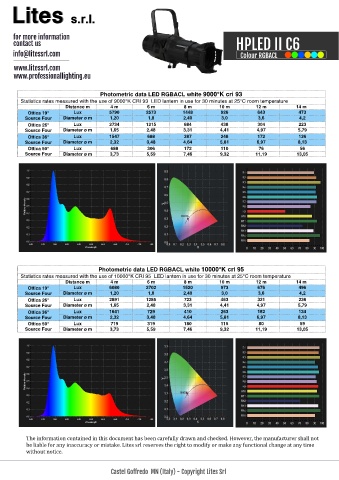

Photometric data LED RGBACL white 9000°K cri 93
Statistics rates measured with the use of 9000°K CRI 93 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Ottica 19° Lux 5790 2573 1448 926 643 473
Source Four Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Ottica 26° Lux 2734 1215 684 438 304 223
Source Four Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Ottica 36° Lux 1547 688 387 248 172 126
Source Four Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Ottica 50° Lux 688 306 172 110 76 56
Source Four Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Photometric data LED RGBACL white 10000°K cri 95
Statistics rates measured with the use of 10000°K CRI 95 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Ottica 19° Lux 6080 2702 1520 973 676 496
Source Four Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Ottica 26° Lux 2891 1285 723 463 321 236
Source Four Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Ottica 36° Lux 1641 729 410 263 182 134
Source Four Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Ottica 50° Lux 719 319 180 115 80 59
Source Four Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

The information contained in this document has been carefully drawn and checked. However, the manufacturer shall not
be liable for any inaccuracy or mistake. Lites srl reserves the right to modify or make any functional change at any time
without notice.

Castel Goffredo MN (Italy) - Copyright Lites Srl
