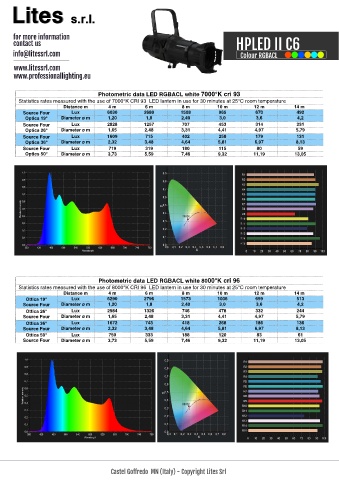

Page 18 - Brochure HPLED II

Lites s.r.l.
Lites s.r.l.

for more information
contact us HPLED II C6
info@litessrl.com Colour RGBACL

www.litessrl.com
www.professionallighting.eu

Photometric data LED RGBACL white 7000°K cri 93
Statistics rates measured with the use of 7000°K CRI 93 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Source Four Lux 6030 2680 1508 965 670 492
Optics 19° Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Source Four Lux 2828 1257 707 453 314 231
Optics 26° Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Source Four Lux 1609 715 402 258 179 131
Optics 36° Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Source Four Lux 719 319 180 115 80 59
Optics 50° Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Photometric data LED RGBACL white 8000°K cri 96
Statistics rates measured with the use of 8000°K CRI 96 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Ottica 19° Lux 6290 2796 1573 1006 699 513
Source Four Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Ottica 26° Lux 2984 1326 746 478 332 244
Source Four Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Ottica 36° Lux 1672 743 418 268 186 136
Source Four Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Ottica 50° Lux 750 333 188 120 83 61
Source Four Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Castel Goffredo MN (Italy) - Copyright Lites Srl
