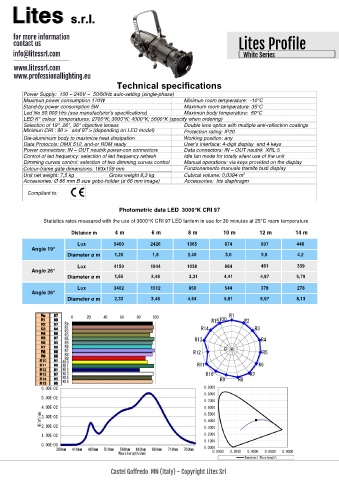

Page 3 - Brochure Lites Profile

Lites s.r.l.
Lites s.r.l.

for more information
contact us Lites Profile
info@litessrl.com White Series

www.litessrl.com
www.professionallighting.eu
Technical specifications
Power Supply: 100 – 240V ~ 50/60Hz auto-setting (single-phase)
Maximun power consumption 170W Minimun room temperature: -10°C
Stand-by power consumption 5W Maximum room temperature: 35°C
Led life 50.000 Hrs (see manufacturer’s specifications) Maximun body temperature: 60°C
LED K° colour temperatures: 2700°K; 3000°K; 4000°K; 5600°K (specify when ordering)
Selection of 19°, 26°, 36° objective lenses Double lens optics with multiple anti-reflection coatings
Minimun CRI : 90 > and 97 > (depending on LED model) Protection rating: IP20
Die-aluminium body to maximize heat dissipation Working position: any
Data Protocols: DMX 512, and-or RDM ready User’s interface: 4-digit display and 4 keys
Power connectors: IN – OUT neutrik power-con connectors Data connectors: IN – OUT neutrik XRL 5
Control of led frequency: selection of led frequency refresh Idle fan mode for totally silent use of the unit
Dimming curves control: selection of two dimming curves control Manual operations: via keys provided on the display
Colour-frame gate dimensions: 163x159 mm Funzionamento manuale tramite tasti display
Unit net weight: 7,5 kg Gross weight 8,3 kg Cubical volume: 0,0394 m 3
Accessories: Ø 86 mm B size gobo-holder (ø 66 mm image) Accessories: Iris diaphragm

Compliant to:

Photometric data LED 3000°K CRI 97

Statistics rates measured with the use of 3000°K CRI 97 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m

Lux 5460 2426 1365 874 607 446
Angle 19°
Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2

Lux 4150 1844 1038 664 461 339
Angle 26°
Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Lux 3402 1512 850 544 378 278
Angle 36°
Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
