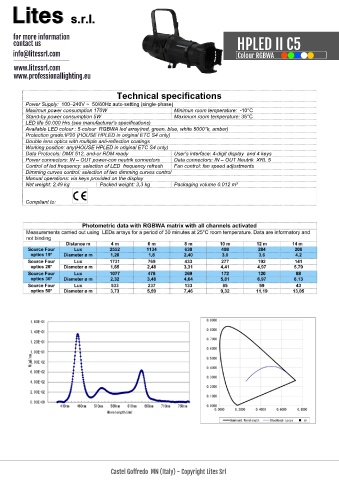

Page 11 - Brochure HPLED II

Lites s.r.l.
Lites s.r.l.

for more information
contact us HPLED II C5
info@litessrl.com Colour RGBWA

www.litessrl.com
www.professionallighting.eu

Technical specifications
Power Supply: 100–240V ~ 50/60Hz auto-setting (single-phase)
Maximun power consumption 170W Minimun room temperature: -10°C
Stand-by power consumption 5W Maximum room temperature: 35°C
LED life 50.000 Hrs (see manufacturer’s specifications)
Available LED colour : 5-colour RGBWA led array(red, green, blue, white 5000°k, amber)
Protection grade:IP20 (HOUSE HPLED in original ETC S4 only)
Double lens optics with multiple anti-reflection coatings
Working position: any(HOUSE HPLED in original ETC S4 only)
Data Protocols: DMX 512, and-or RDM ready User’s interface: 4-digit display and 4 keys
Power connectors: IN – OUT power-con neutrik connectors Data connectors: IN – OUT Neutrik XRL 5
Control of led frequency: selection of LED frequency refresh Fan control: fan speed adjustments
Dimming curves control: selection of two dimming curves control
Manual operations: via keys provided on the display
Net weight: 2,49 kg Packed weight: 3,3 kg Packaging volume 0.012 m 3

Compliant to:

Photometric data with RGBWA matrix with all channels activated
Measurements carried out using LEDs arrays for a period of 30 minutes at 25°C room temperature. Data are informatory and
not binding
Distance m 4 m 6 m 8 m 10 m 12 m 14 m
Source Four Lux 2552 1134 638 408 284 208
optics 19° Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Source Four Lux 1731 769 433 277 192 141
optics 26° Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Source Four Lux 1077 478 269 172 120 88
optics 36° Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Source Four Lux 533 237 133 85 59 43
optics 50° Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05
