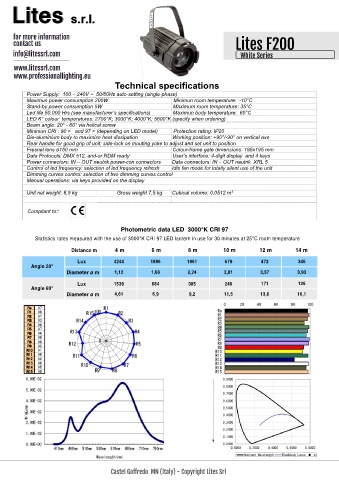

Page 3 - Brochure Lites F200

Lites s.r.l.
Lites s.r.l.

for more information
contact us Lites F200
info@litessrl.com White Series

www.litessrl.com
www.professionallighting.eu
Technical specifications
Power Supply: 100 – 240V ~ 50/60Hz auto-setting (single-phase)
Maximun power consumption 200W Minimun room temperature: -10°C
Stand-by power consumption 5W Maximum room temperature: 35°C
Led life 50.000 Hrs (see manufacturer’s specifications) Maximun body temperature: 60°C
LED K° colour temperatures: 2700°K; 3000°K; 4000°K; 5600°K (specify when ordering)
Beam angle: 20° - 60° via helical screw
Minimun CRI : 90 > and 97 > (depending on LED model) Protection rating: IP20
Die-aluminium body to maximize heat dissipation Working position: +90°/-90° on vertical axe
Rear handle for good grip of unit: side-lock on mouting yoke to adjust and set unit to position
Fresnel lens ø150 mm Colour-frame gate dimensions: 185x195 mm
Data Protocols: DMX 512, and-or RDM ready User’s interface: 4-digit display and 4 keys
Power connectors: IN – OUT neutrik power-con connectors Data connectors: IN – OUT neutrik XRL 5
Control of led frequency: selection of led frequency refresh Idle fan mode for totally silent use of the unit
Dimming curves control: selection of two dimming curves control
Manual operations: via keys provided on the display

Unit net weight: 6,9 kg Gross weight 7,5 kg Cubical volume: 0,0512 m 3

Compliant to::

Photometric data LED 3000°K CRI 97
Statistics rates measured with the use of 3000°K CRI 97 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m

Lux 4244 1886 1061 679 472 346
Angle 20°

Diameter ø m 1,12 1,68 2,24 2,81 3,37 3,93
Lux 1539 684 385 246 171 126
Angle 60°
Diameter ø m 4,61 6,9 9,2 11,5 13,8 16,1

Castel Goffredo MN (Italy) - Copyright Lites Srl
