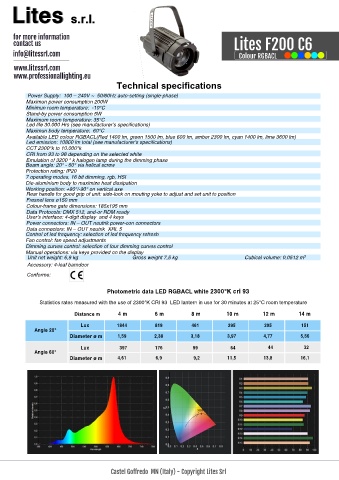

Page 19 - Brochure Lites F200

Lites s.r.l.
Lites s.r.l.

for more information
contact us Lites F200 C6
info@litessrl.com Colour RGBACL

www.litessrl.com
www.professionallighting.eu
Technical specifications
Power Supply: 100 – 240V ~ 50/60Hz auto-setting (single-phase)
Maximun power consumption 200W
Minimun room temperature: -10°C
Stand-by power consumption 5W
Maximum room temperature: 35°C
Led life 30.000 Hrs (see manufacturer’s specifications)
Maximun body temperature: 60°C
Available LED colour RGBACL(Red 1400 lm, green 1500 lm, blue 600 lm, amber 2300 lm, cyan 1400 lm, lime 3600 lm)
Led emission: 10800 lm total (see manufacturer’s specifications)
CCT 2300°k to 10.000°k
CRI from 93 to 98 depending on the selected white
Emulation of 3200 ° k halogen lamp during the dimming phase
Beam angle: 20° - 60° via helical screw
Protection rating: IP20
7 operating modes, 16 bit dimming, rgb, HSI
Die-aluminium body to maximize heat dissipation
Working position: +90°/-90° on vertical axe
Rear handle for good grip of unit: side-lock on mouting yoke to adjust and set unit to position
Fresnel lens ø150 mm
Colour-frame gate dimensions: 185x195 mm
Data Protocols: DMX 512, and-or RDM ready
User’s interface: 4-digit display and 4 keys
Power connectors: IN – OUT neutrik power-con connectors
Data connectors: IN – OUT neutrik XRL 5
Control of led frequency: selection of led frequency refresh
Control of led frequency: selection of led frequency refresh
Fan control: fan speed adjustments
Dimming curves control: selection of four dimming curves control
Manual operations: via keys provided on the display
Unit net weight: 6,9 kg Gross weight 7,5 kg Cubical volume: 0,0512 m 3

Accessory: 4-leaf barndoor
Peso con imballo 8,5 kg Volume imballo 0,0512 m 3
Conforme:

Photometric data LED RGBACL white 2300°K cri 93

Statistics rates measured with the use of 2300°K CRI 93 LED lantern in use for 30 minutes at 25°C room temperature
Distance m 4 m 6 m 8 m 10 m 12 m 14 m

Lux 1844 819 461 295 205 151
Angle 20°
Diameter ø m 1,59 2,38 3,18 3,97 4,77 5,56

Lux 397 176 99 64 44 32
Angle 60°
Diameter ø m 4,61 6,9 9,2 11,5 13,8 16,1
